mpled display xr led screen 3D

Column Curved Flexible Led Screen Display 2.5mm 240x120mm for Shopping malls
Column Curved Flexible Led Screen Display 2.5mm 240x120mm for Shopping malls
Column Curved Flexible Led Screen Display 2.5mm 240x120mm for Shopping malls

Column Curved Flexible Led Screen Display 2.5mm 240x120mm for Shopping malls

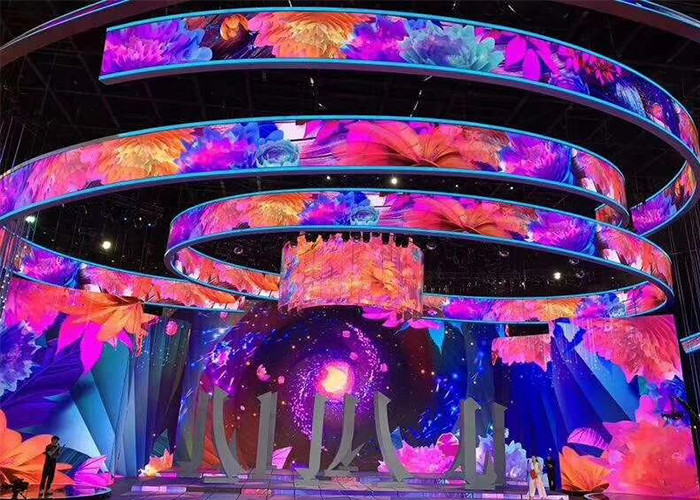

1.When treated as a cylindrical shape, the picture is flat and beautiful, and the signal line and power line between the cabinets adopt quick couplings, which are convenient and quick to install, and can be used with audio and video processing systems.
2.It can also realize a multi-screen software module. By connecting to the main control computer, there are three large circular LED display screens on the appearance of the cylinder. Lifelike picture.

Product Detail

Pixel Pitch

2.5mm

LED Lamp

SMD2121

LED configuration

SMD 3 in 1

Module Size

240mm x 120mm

Module pixels

120x60dots

Average Power/sqm (watts)

240

Max Power/sqm(watts)

800

Brightness

800cd/㎡

Viewing Angle

H:160°, V:120°

Best Viewing Distance

2.5-200 meters

Brightness Control

256 level

Gray scale

14 bit

Refresh frequency

3840hertz

Driving mode

1/30 scan

Input power frequency

50 or 60 Hertz

Input Voltage

110 ~ 240 Volt,60Hz

Blind spot rate

<1/10000

Lifetime at 50% brightness

100000 hours

Ingress Protection

IP31

Operating temperature

﹣20 ~﹢60 ℃

Operating humidity

10% ~ 90%

Control distance

CAT5 cable:<100 m; Single mode fiber:<10 km

Signal input format

HDMI,DVI,SDI,VGA etc.

Operating system

Windows (2000/XP/Vista/7/8/10)

1.Support real-time broadcast, with DVI, HDMI, 3G/HD/SD three-speed SDI high-definition display mode, suitable for indoor places such as TV video programs, VCD or DVD and live live

2.It has the most advanced fully automatic production line and a full set of imported testing equipment in the industry, an excellent management team, strong technical development strength, and a team of professional talents who have long been engaged in the research, development, production and service of LED application products.

3.360-degree high-definition display, modular design, constant current static drive, high-brightness true color output, clear picture without jitter

One- Stop Solution Service

1. 3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3. 7/24 online remote control service , and local engineer service within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years experience.
7. Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.

Flexible LED display (33)
Flexible LED display (41)
Flexible LED display (42)
Flexible LED display (44)
Flexible LED display (43)

FAQ

Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer  which has specialized in led display industry for more than 7 years.

Q2:How does your factory do regarding quality control?
A2:Quality is priority. Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.

Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.

Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.

Q6:How long is the warranty?
A6:The standard warranty is 2 year. It could be longer upon request.

Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
